TENET GECO Motion
4-axis programmable motion controller specifically designed for LabVIEW users.
TENET GECO Motion - The easiest way to integrate motion control with LabVIEW.
The TENET GECO Motion is a 4-axis programmable motion controller designed specifically for LabVIEW users. In addition to an unique modular hardware design, the TENET GECO Motion also includes an intuitive LabVIEW API, featuring:

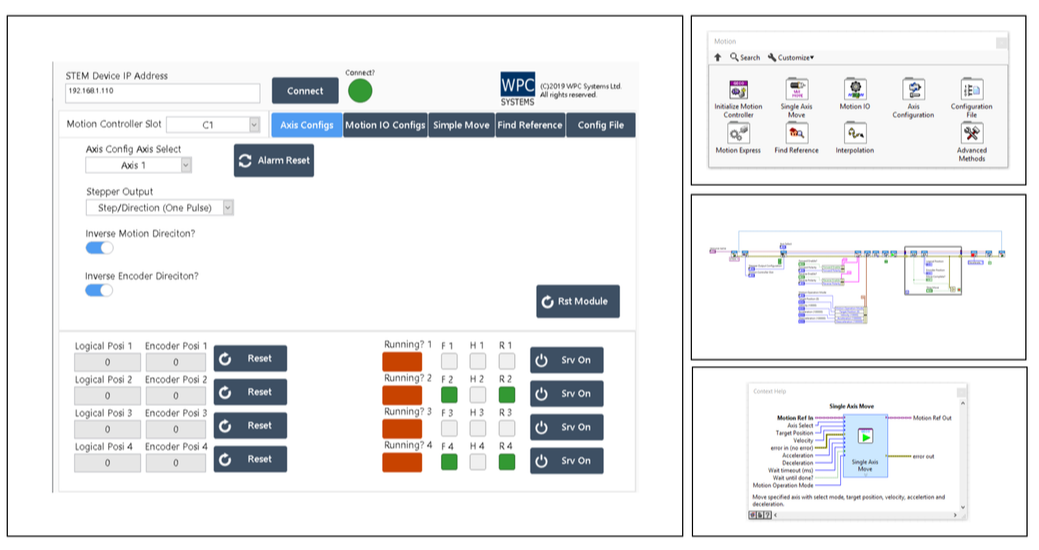

- Test Panels for quick debug
- LabVIEW examples for every function

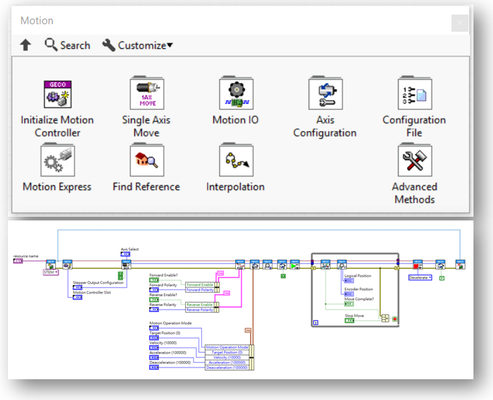

- NEW! Motion Express VI for easy programming

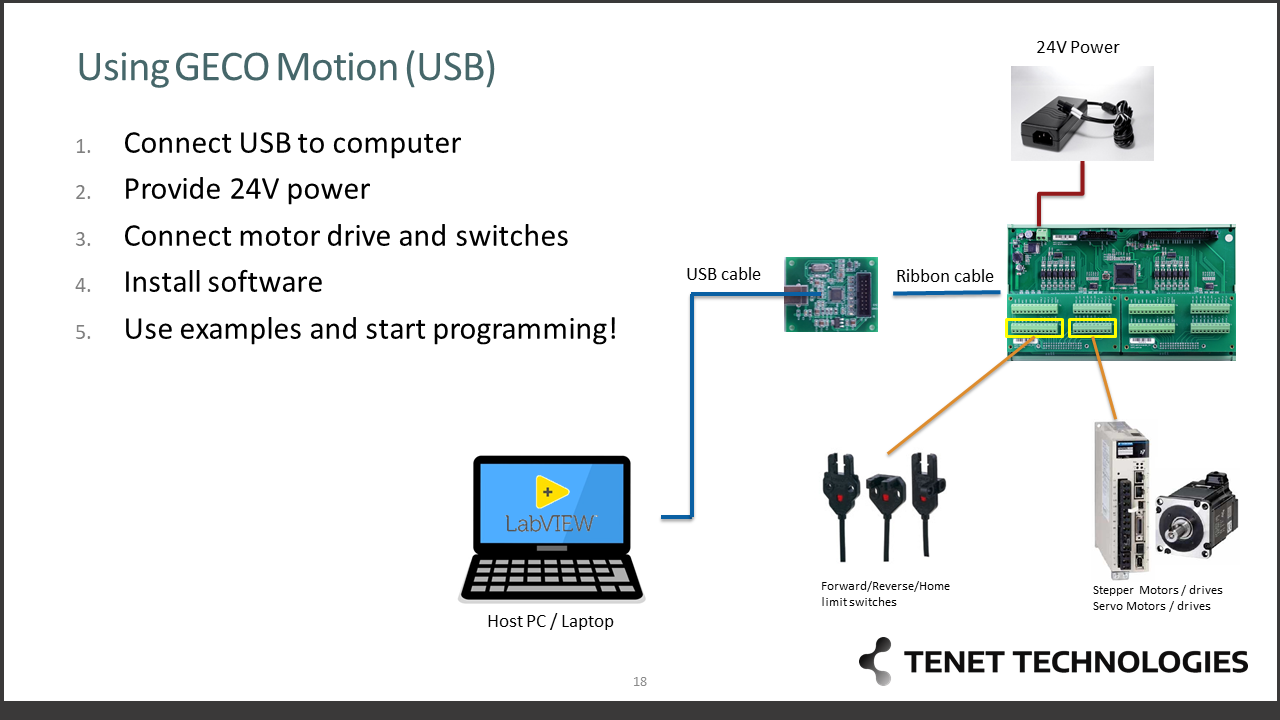

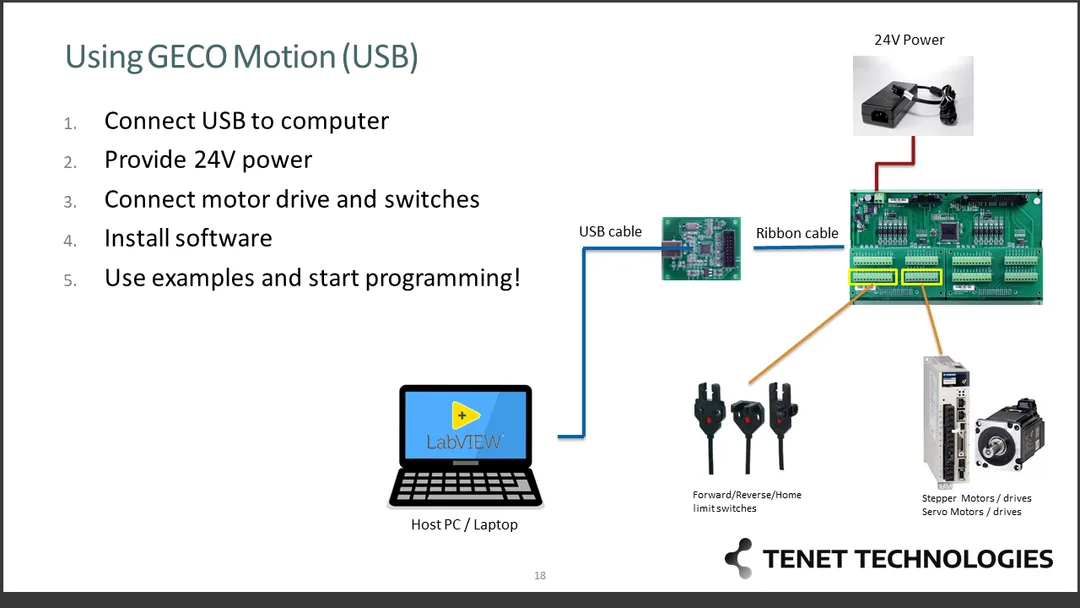

How to use GECO Motion
1. Connect USB to computer
2. Provide 24V power
3. Connect motor drive and switches
4. Install software
5. Use examples and start programming!
2. Provide 24V power
3. Connect motor drive and switches
4. Install software
5. Use examples and start programming!
For a comprehensive tutorial, visit our getting started guide:
Product Specifications
- Functional replacement for NI 73XX series motion controllers.
- Pulse output for stepper motor control (Max rate: 8M pps)
- Programmable acceleration and deceleration time
- Trapezoidal and S-curve velocity profile
- Encoder input (ABZ) up to 12MHz
- Home/FWD/REV limit inputs
- Servo On/Alarm Clear outputs
- Breakpoint/Position Capture functions

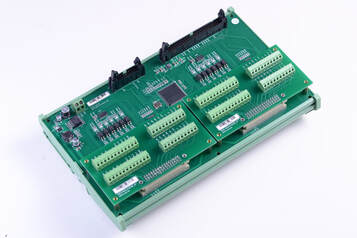

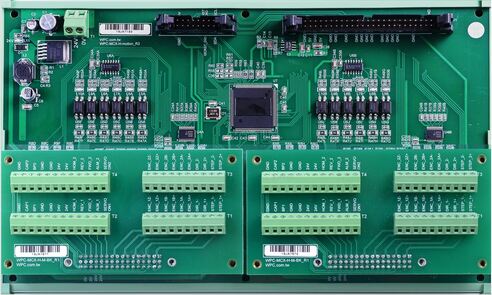

- Optional breakout board for direct connectivity to drives:
- Delta ASDA-B2
- Yaskawa Sigma-7
- Panasonic Minas A4/A5/A6
- Mitsubishi MR-J4
- NEW! Motion Express VI, making LabVIEW programming easy!
Need more information? Get in touch with an expert today!
Demo Videos
Manuals and Downloads
GECO Motion LabVIEW driver software and additional information available here:
